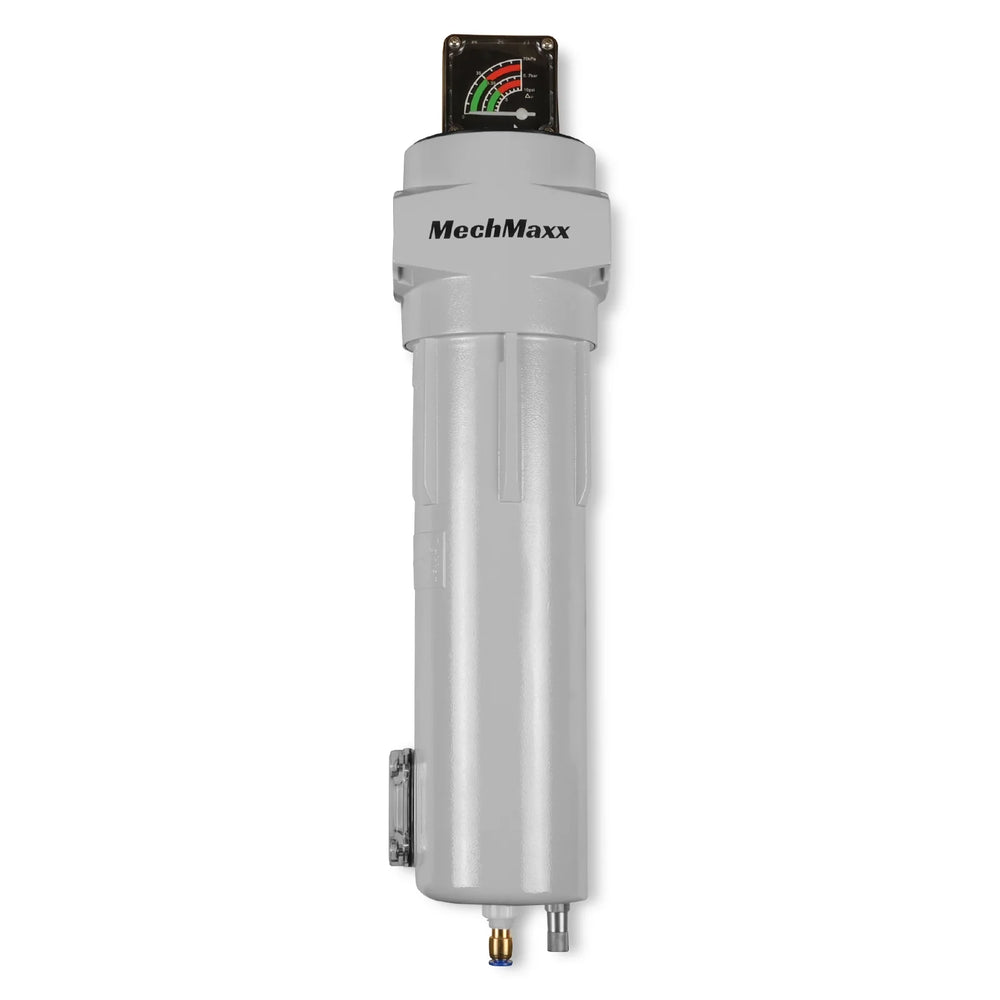

254 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Gauge
$31999
From $15.56/mo or 0% APR with
View sample plans
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Payment:

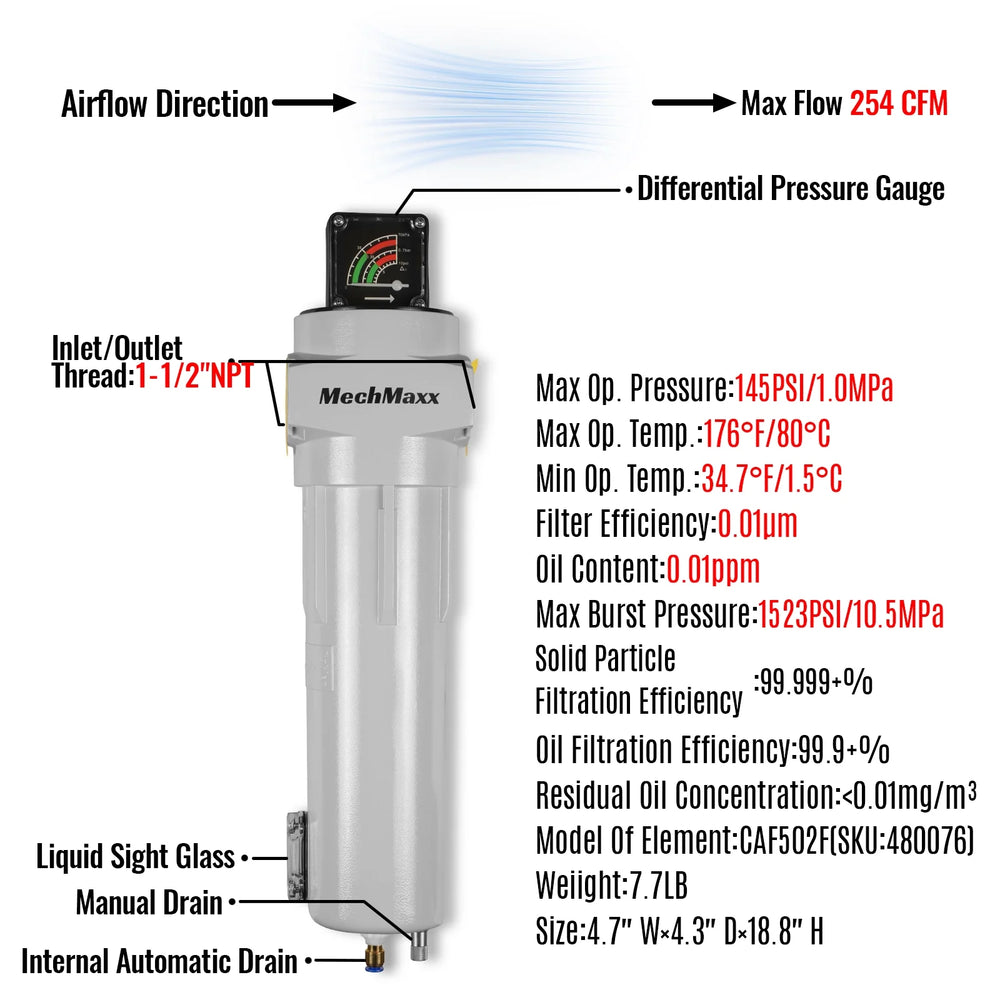

Specifications
| MODEL | CAF502 |
| Configuration | Differential Pressure Gauge; Liquid Sight Glass; Internal Automatic Drain; Manual Drain |
| Max Flow | 254 CFM |
| Inlet/Outlet Thread | 1½"NPT |
| Max Op. Pressure | 145PSI/1.0MPa |
| Max Op. Temp. | 176℉/80℃ |
| Min Op. Temp. | 34.7℉/1.5℃ |
| Filter Efficiency | 0.01μm |
| Oil Content | 0.01ppm |
| Maximum Burst Pressure | 1,523PSI/10.5MPa |
| Solid Particle Filtration Efficiency | 99.999+% |
| Oil Filtration Efficiency | 99.9+% |
| Residual Oil Concentration | ＜0.01mg/m³ |

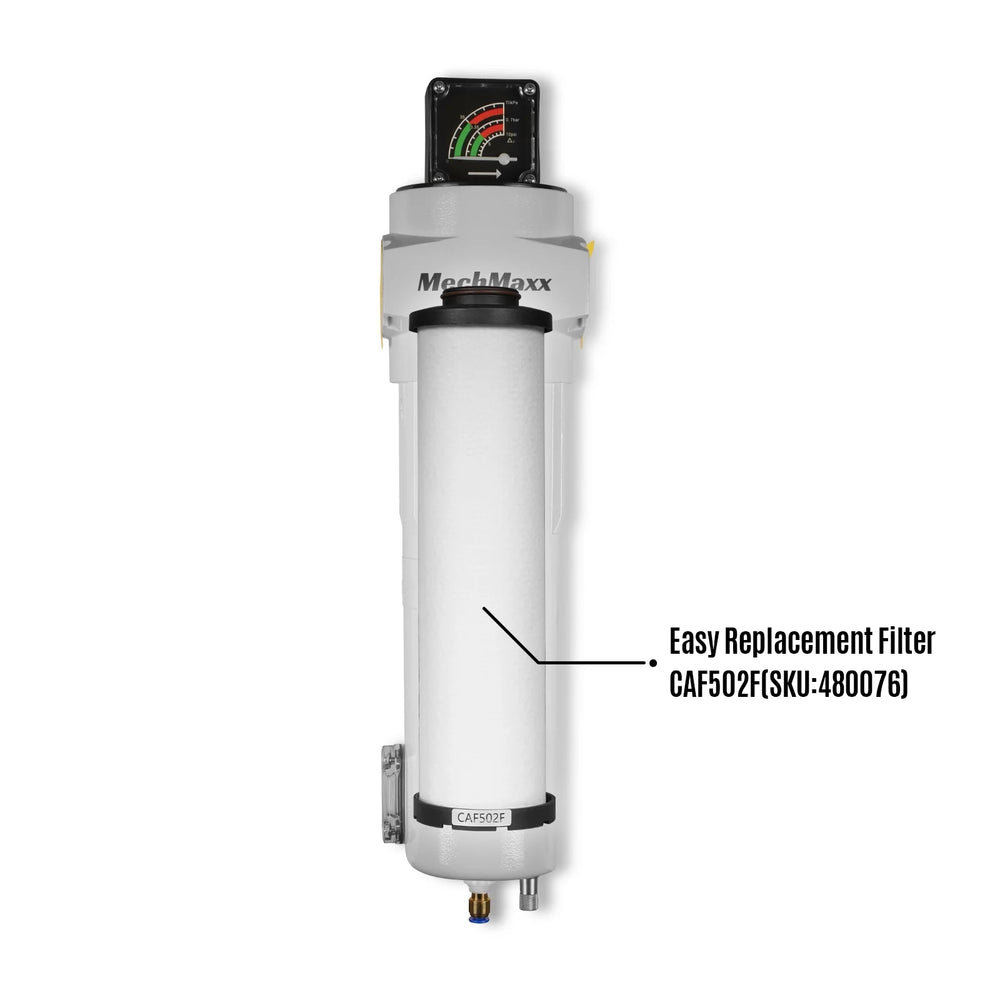

| Model Of Element | CAF502F（SKU:480076） |
| Weight | 7.7LB |
| Size（W*D*H） | 4.7×4.3×18.8in |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
