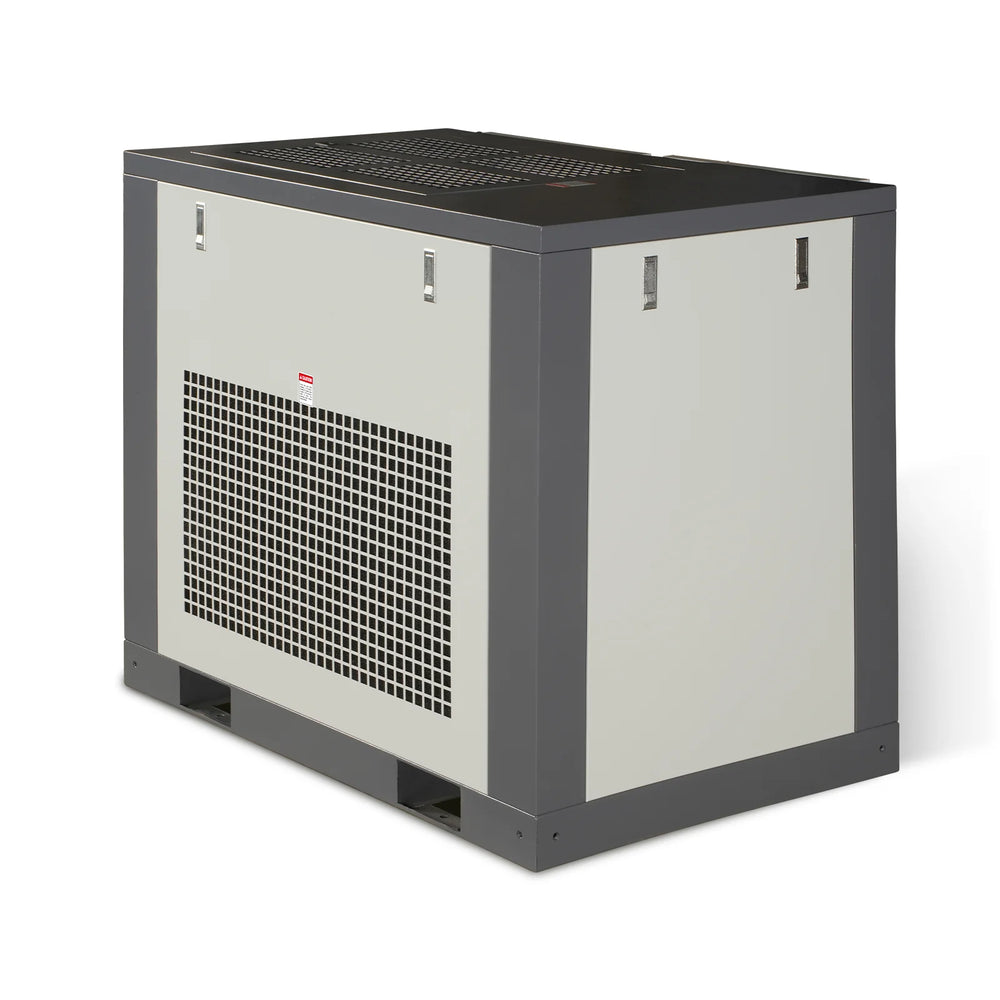

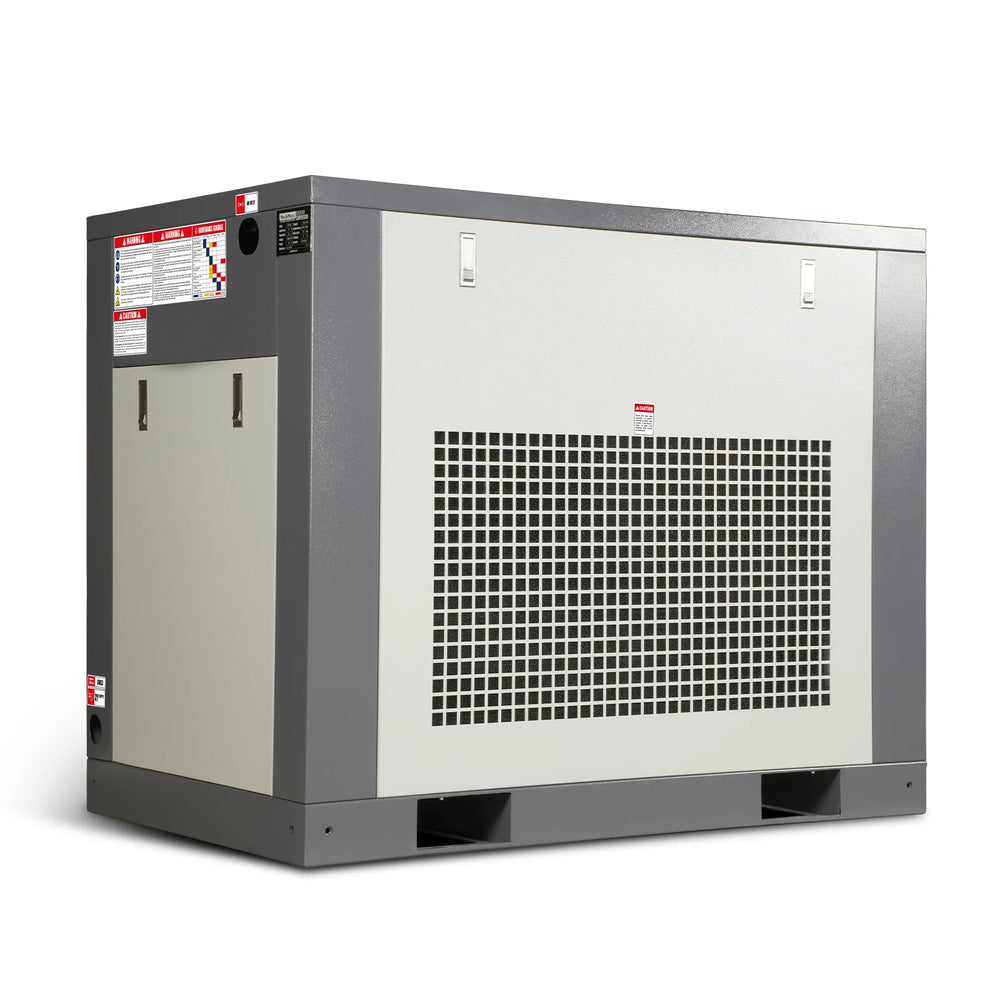

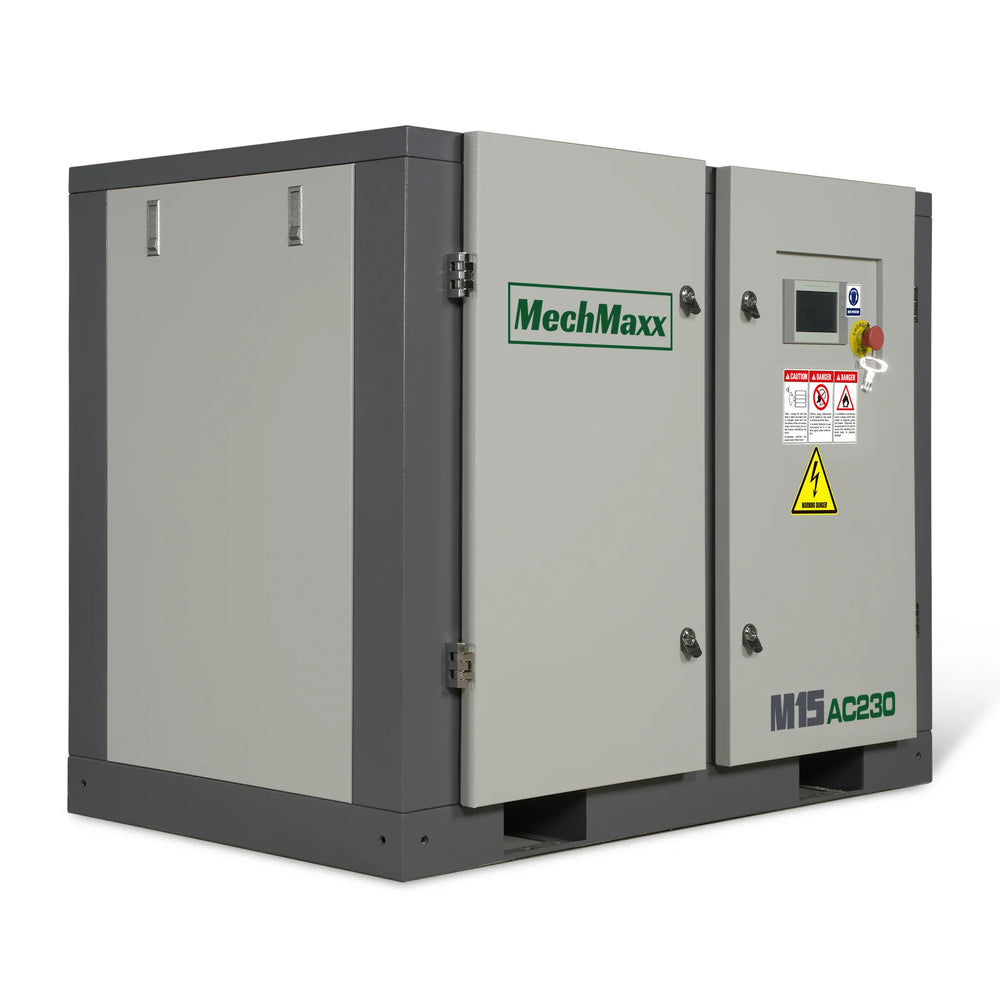

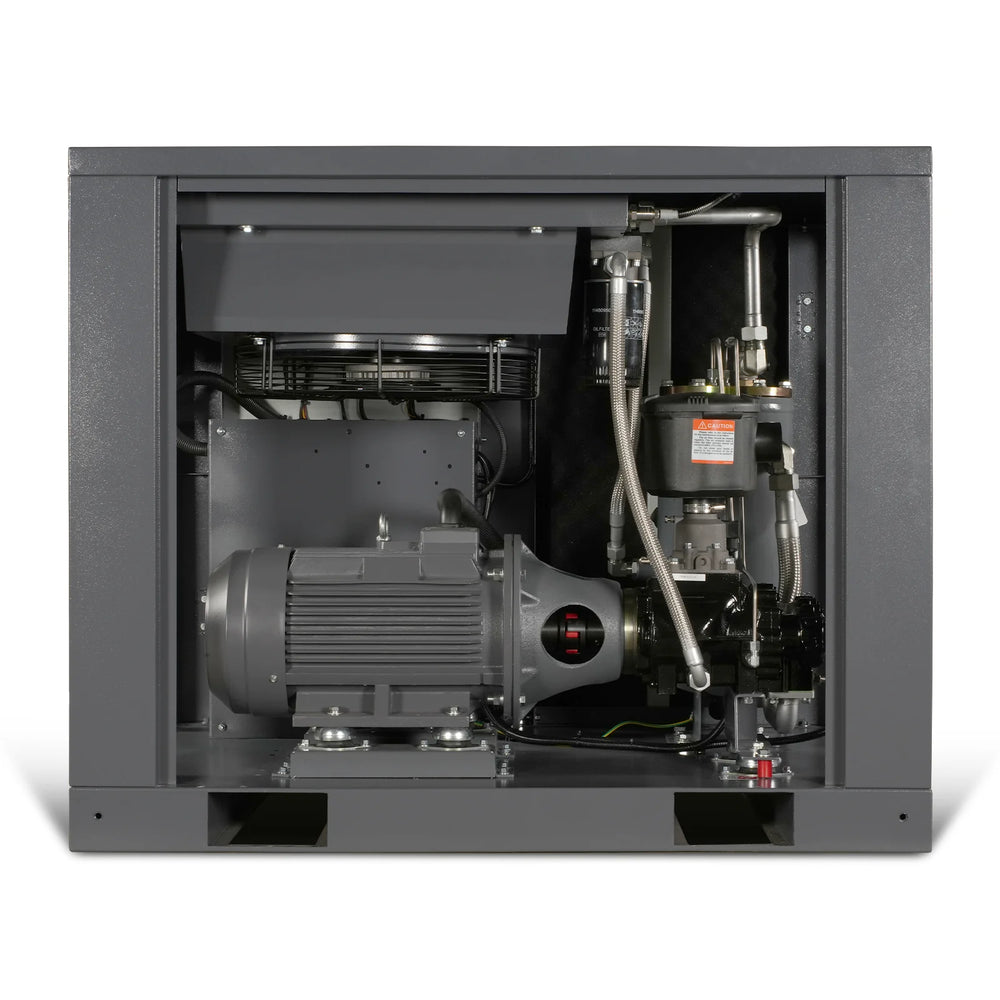

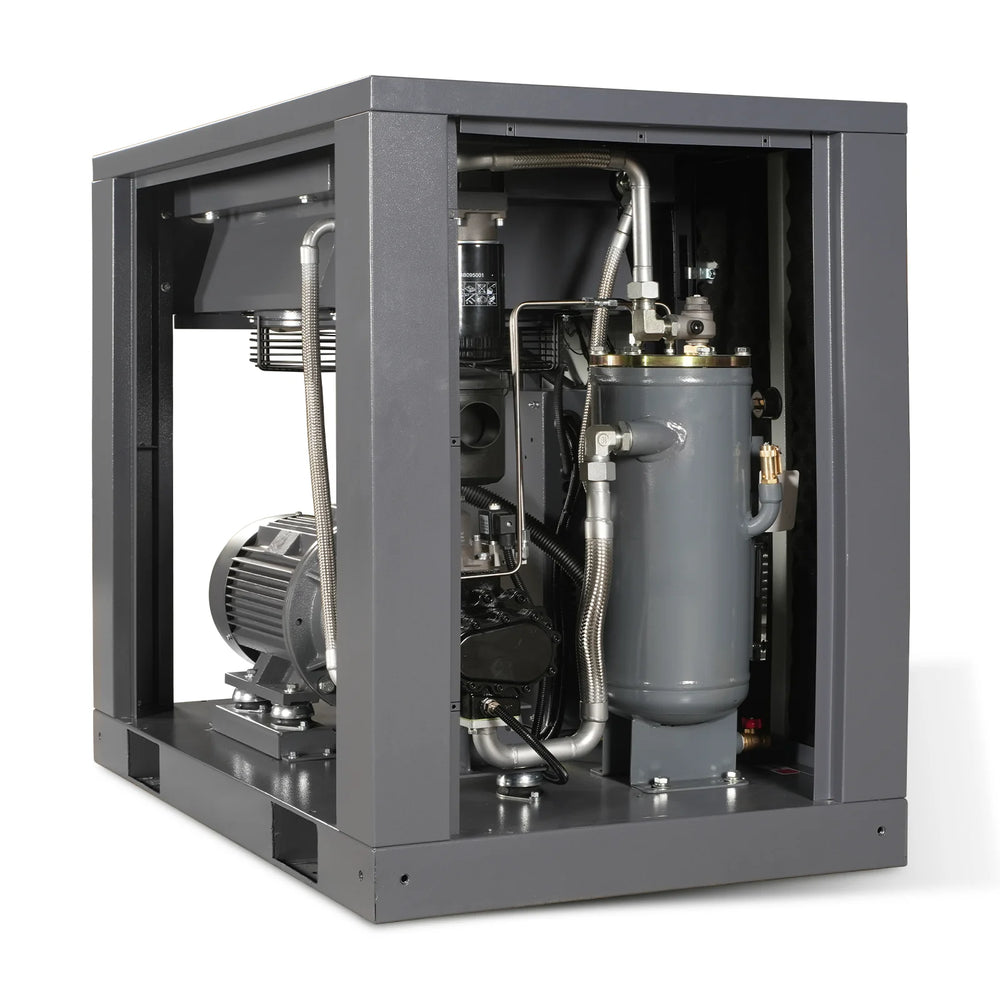

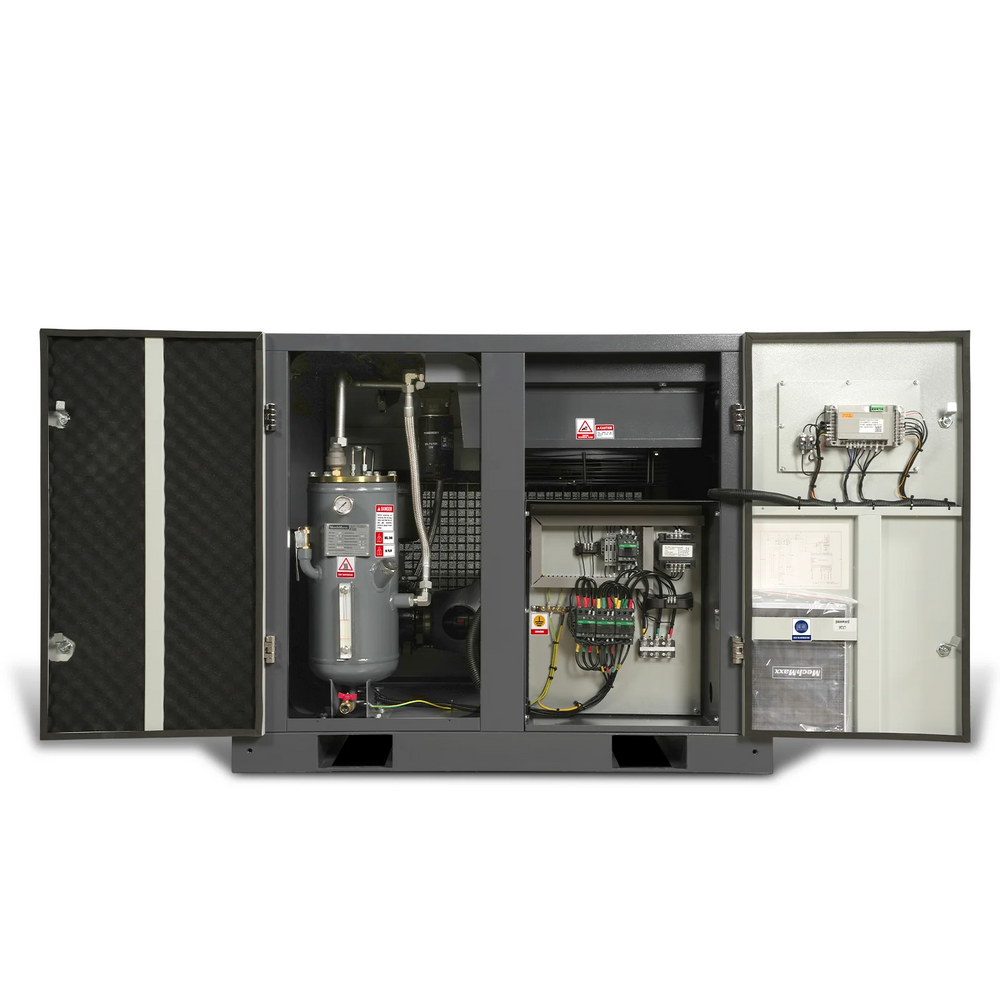

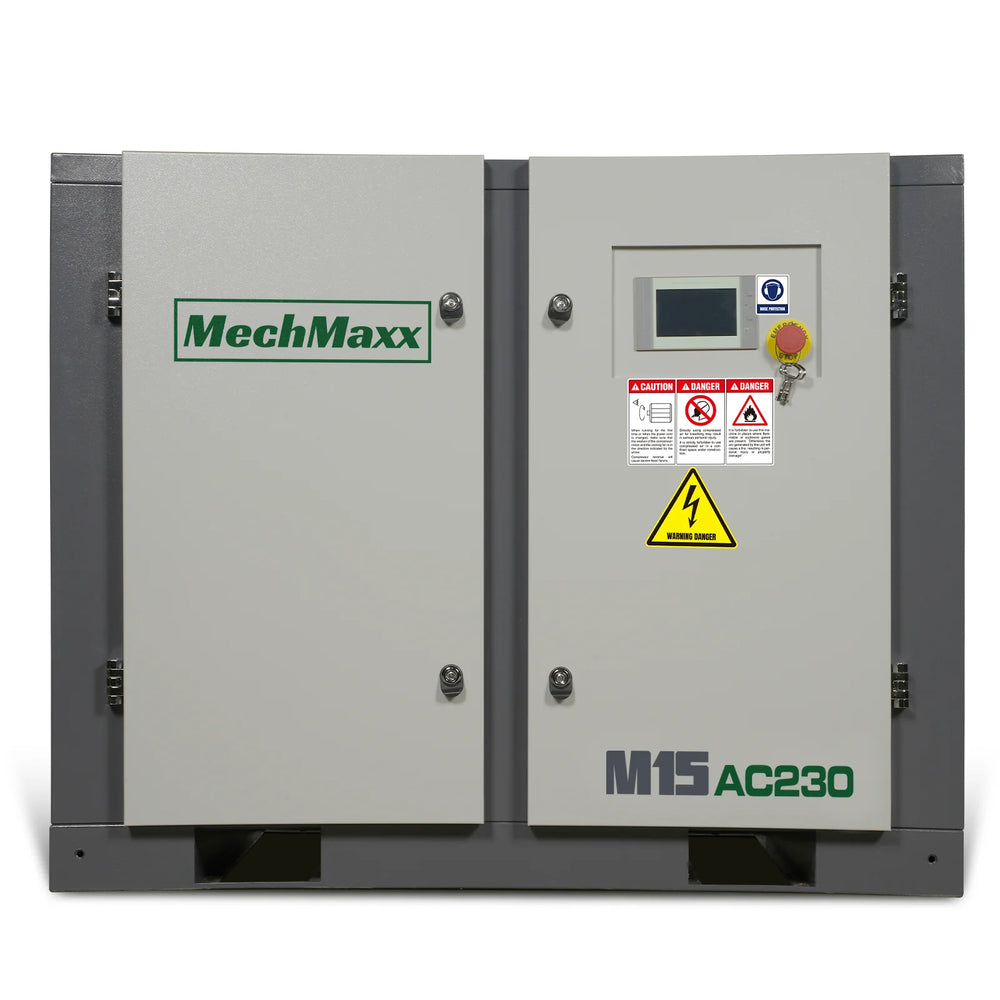

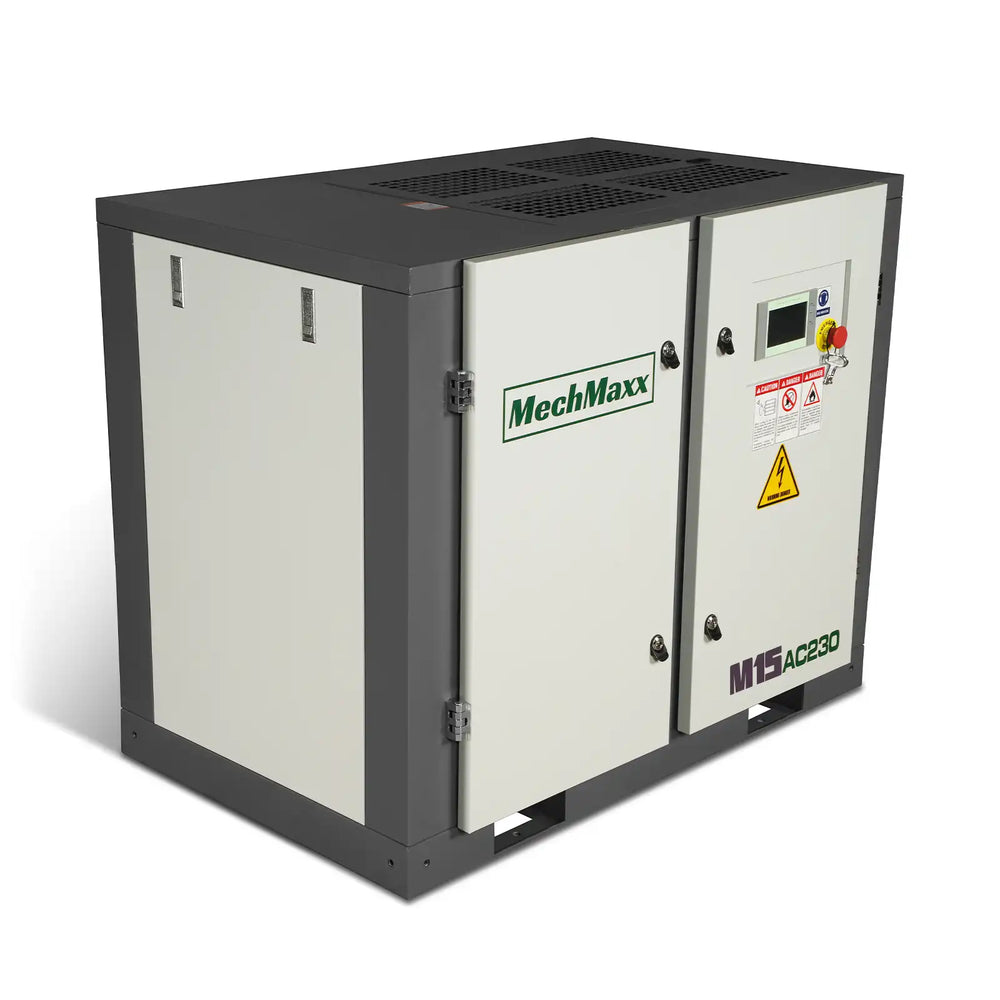

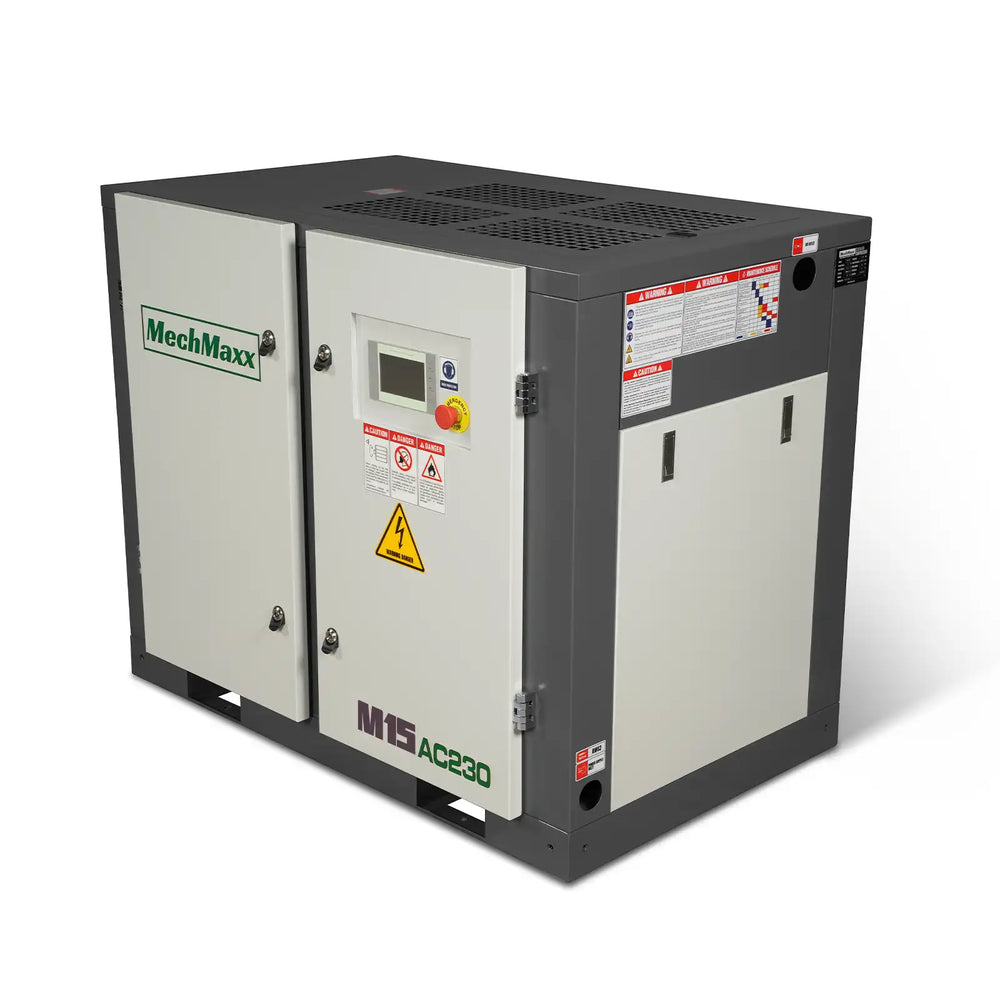

15HP Rotary Screw Air Compressor - 45 CFM, 116 PSI, 230V 3-Phase | Industrial-Grade
$369900
$3,999.00
Save $300
From $179.91/mo or 0% APR with
View sample plans
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Payment:
Specifications
| Model | M15AC230 |
| Voltage | 230V 3PH 60HZ（L1+L2+L3,G） |
| Air Flow Capacity | 45.9CFM |

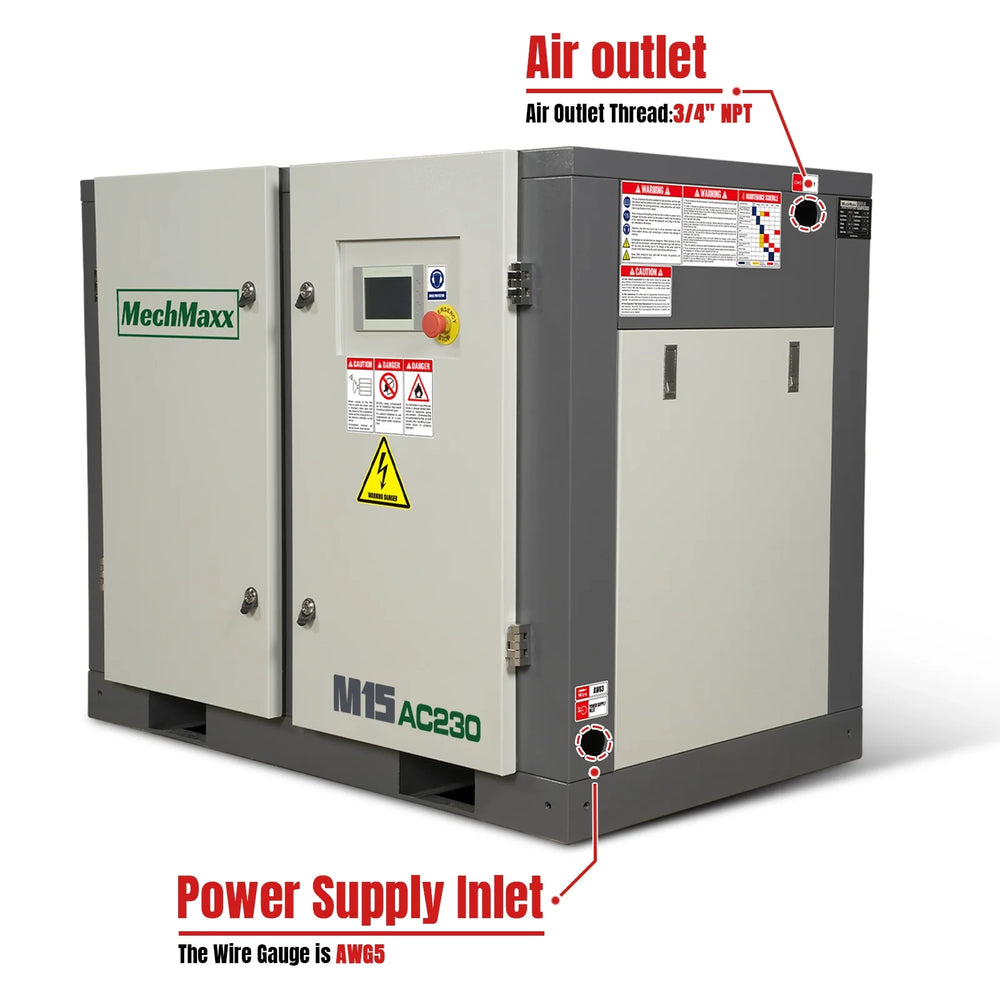

| Wire Gauge | AWG5 |
| Air Outlet Thread | 3/4“NPT |
| Oil Tank Capacity | 2.64Gal (10L) |
| Maximum Current | 40.8A |
| Rated Power | 15HP |
| Starting Method | Star-Delta (Wye-Delta) Start |
| Rated Pressure | 116 PSI (0.8 MPa) |
| Noise Level | 65dba |
| Motor Speed | 3515RPM |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Recommended Oil Grade | S3R46 |
| Oil Sight Glass | Yes |
| Pump Drive | Belt Drive |
| Standard Adaptor | 3/4" NPT |
| Machine Size: | 49.2" x 31.5" x 39.5" |
| Packing Size: | 50" x 33.46" x 45.3" |
| N.W.:/ G.W.: | 602 lb/704 lb |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
