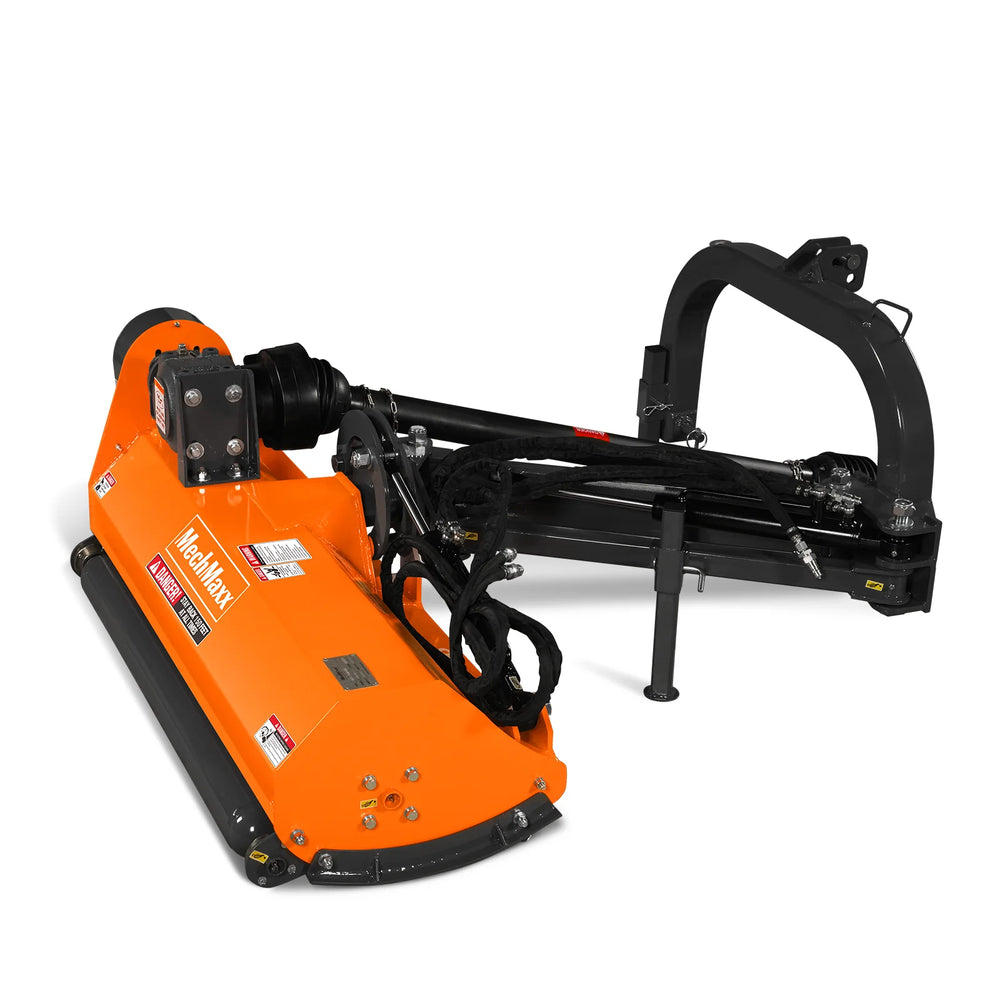

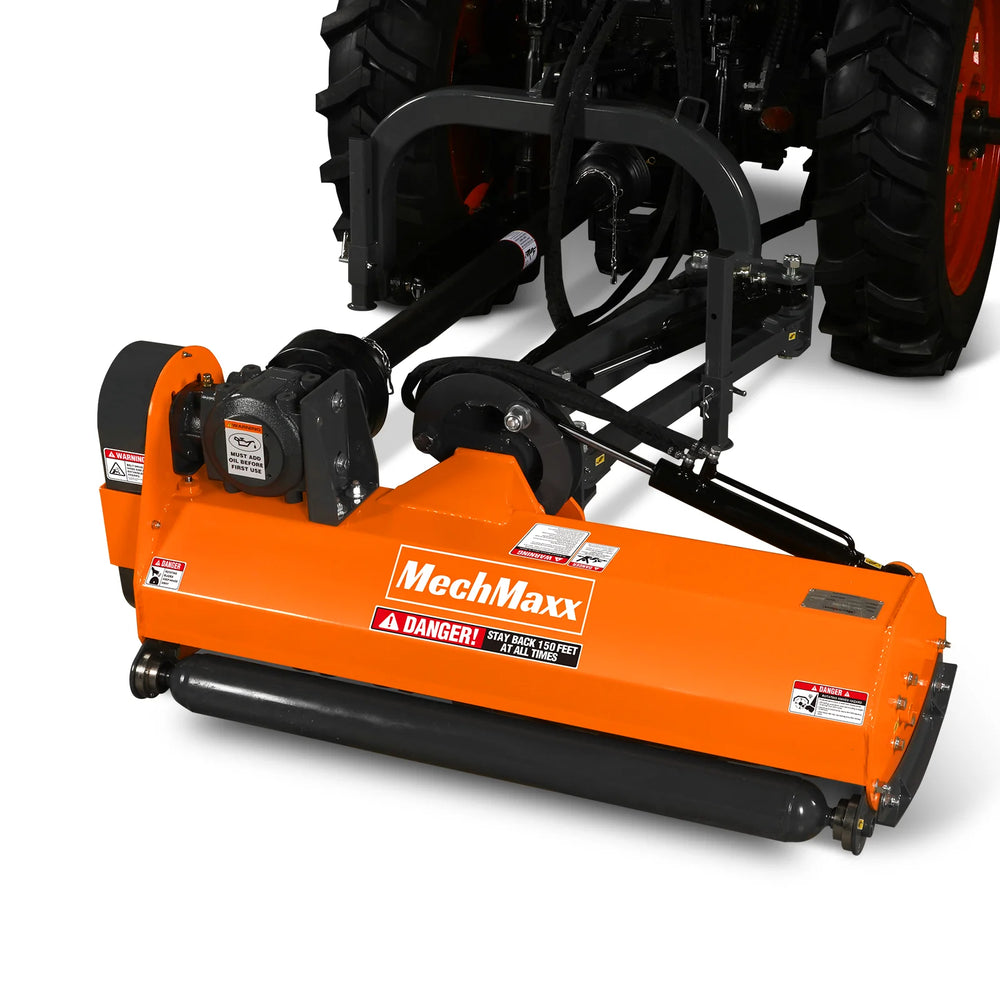

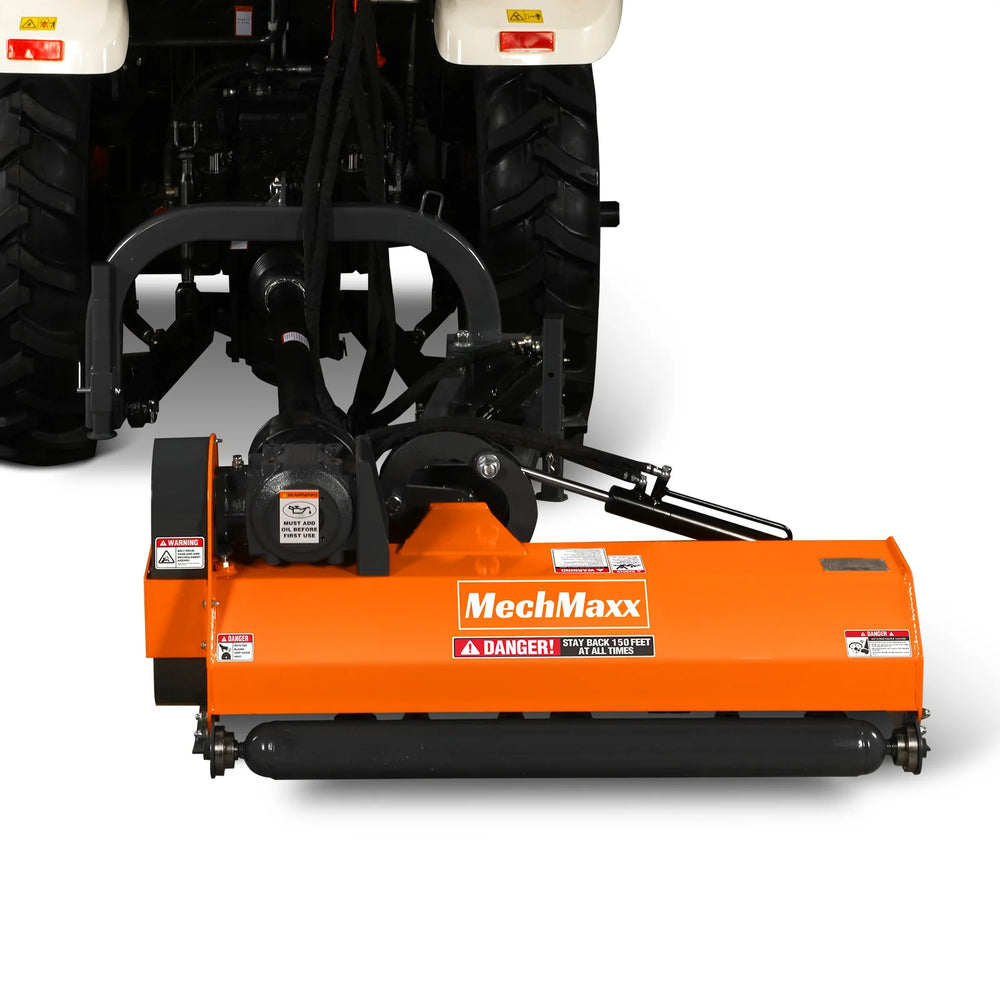

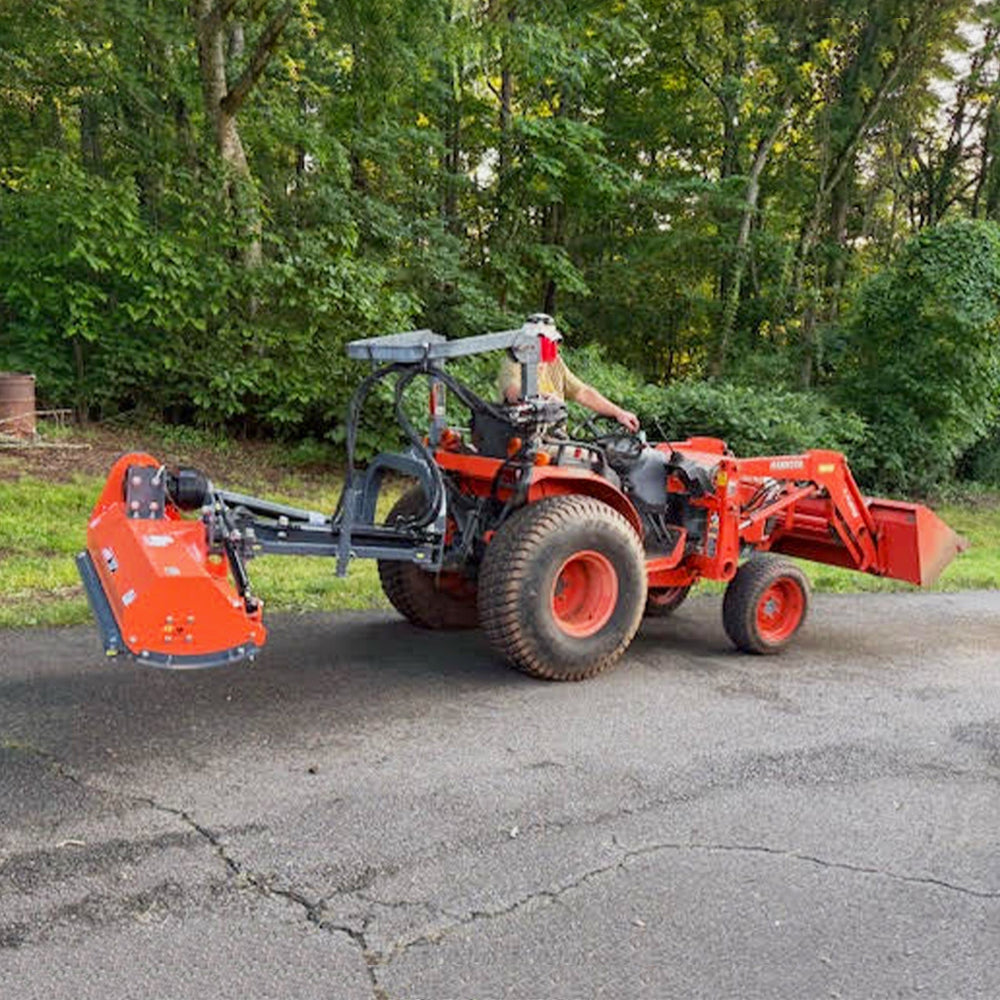

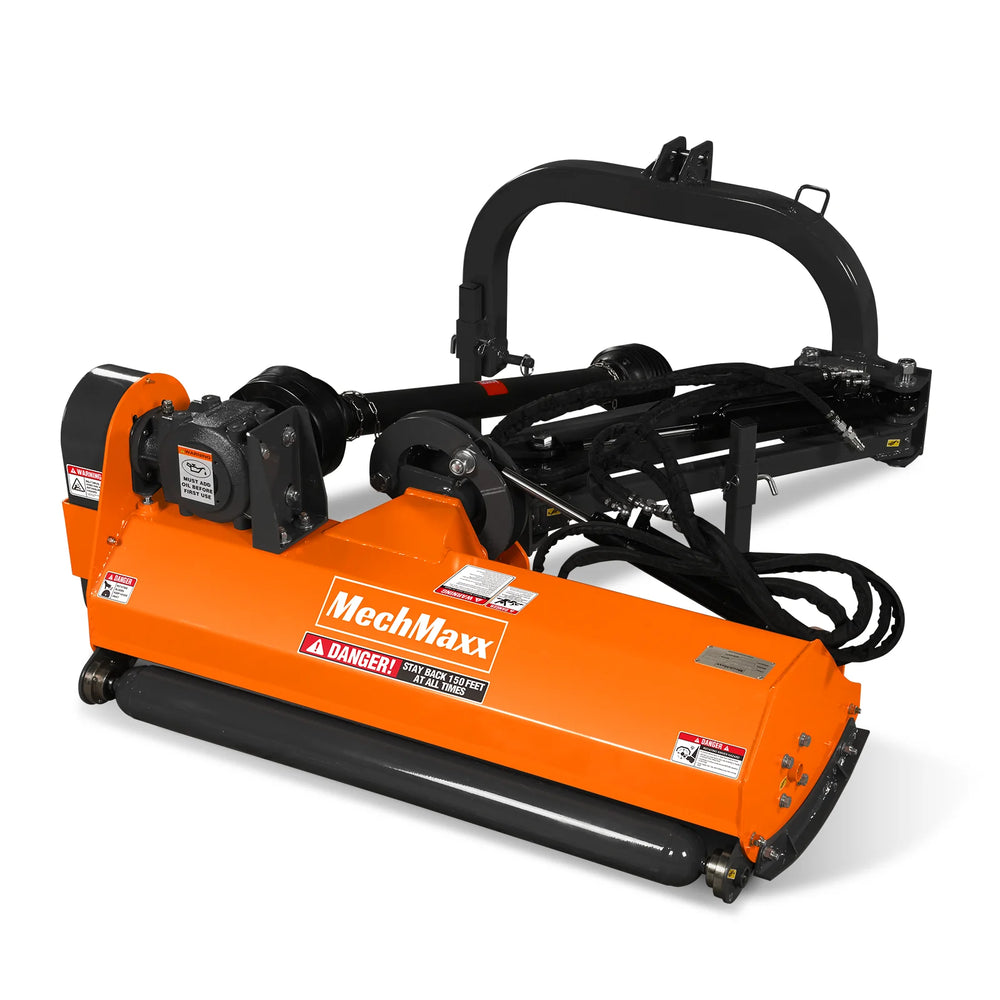

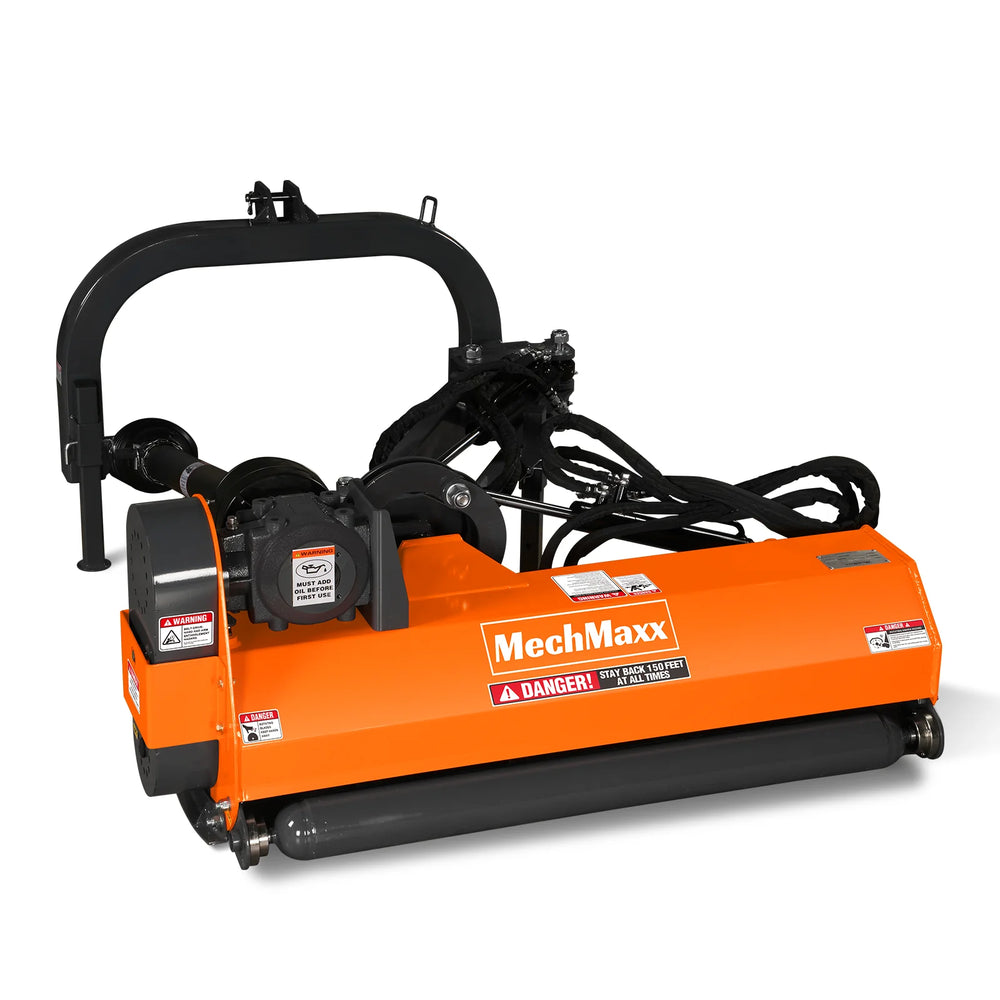

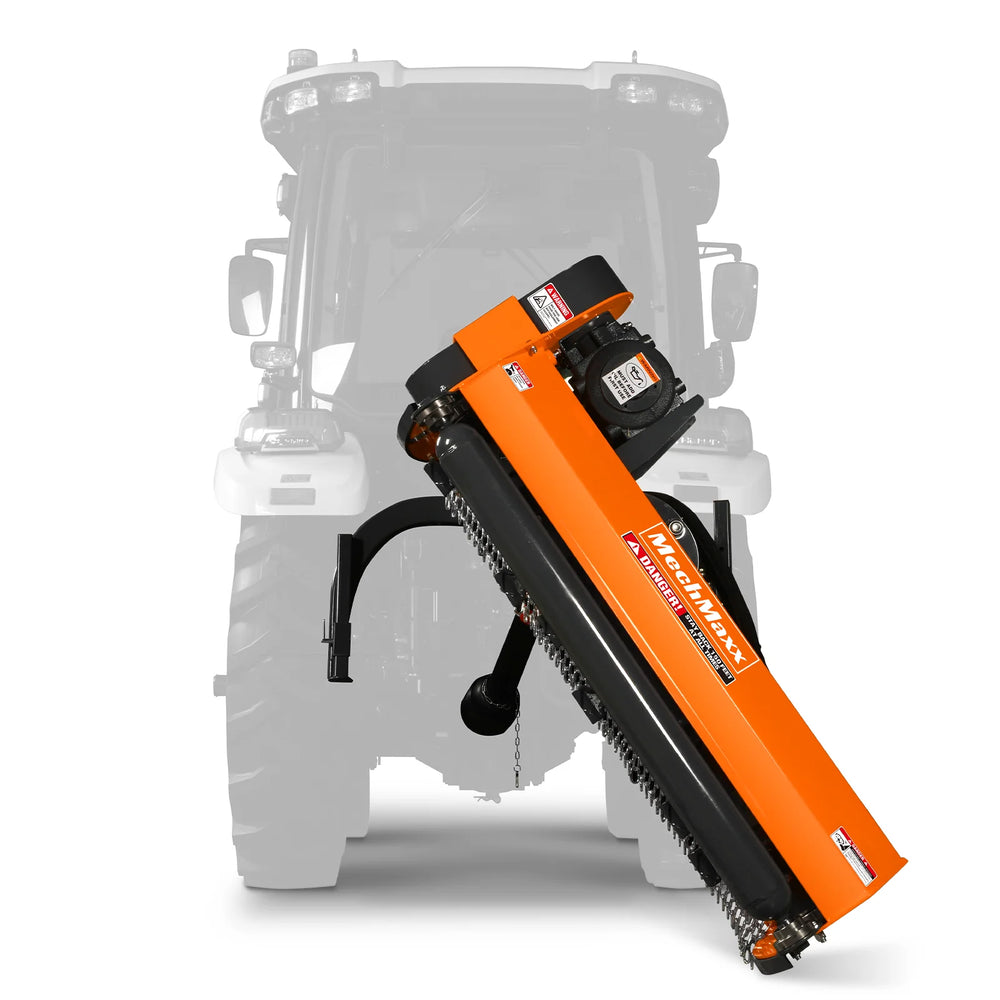

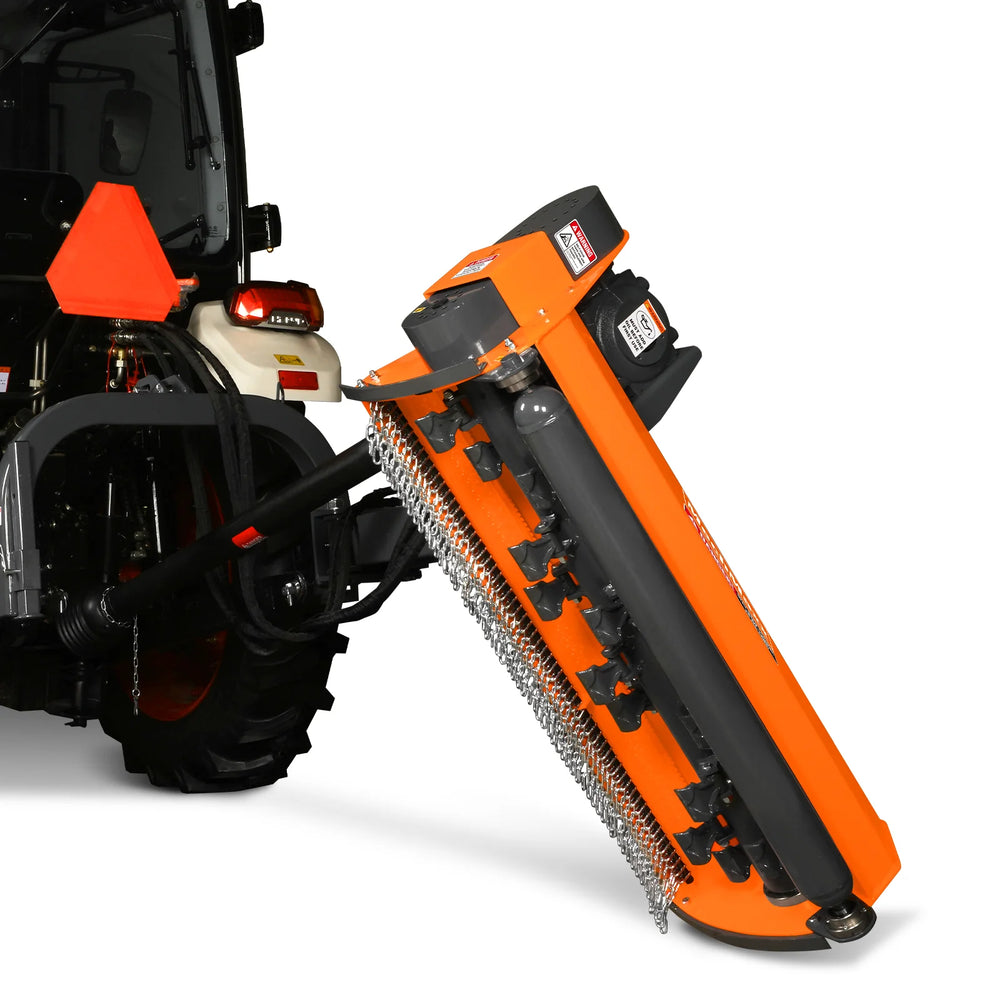

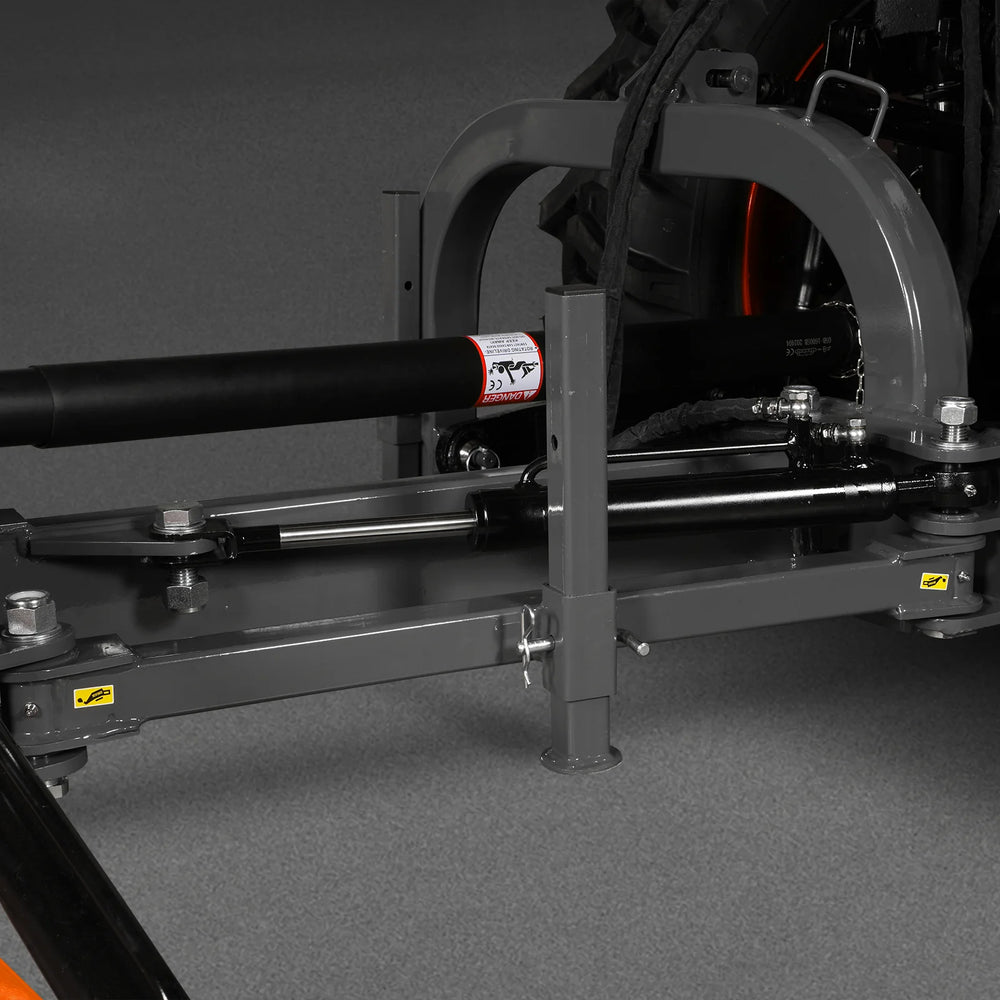

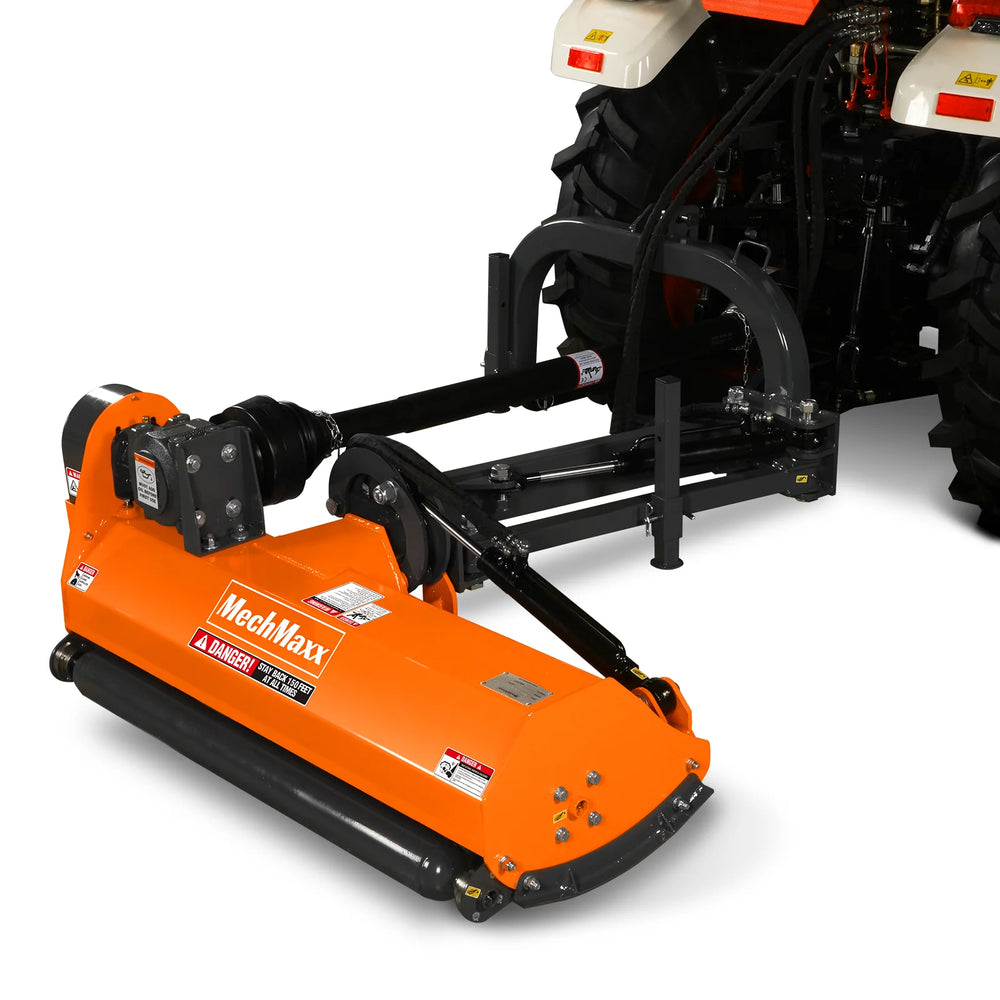

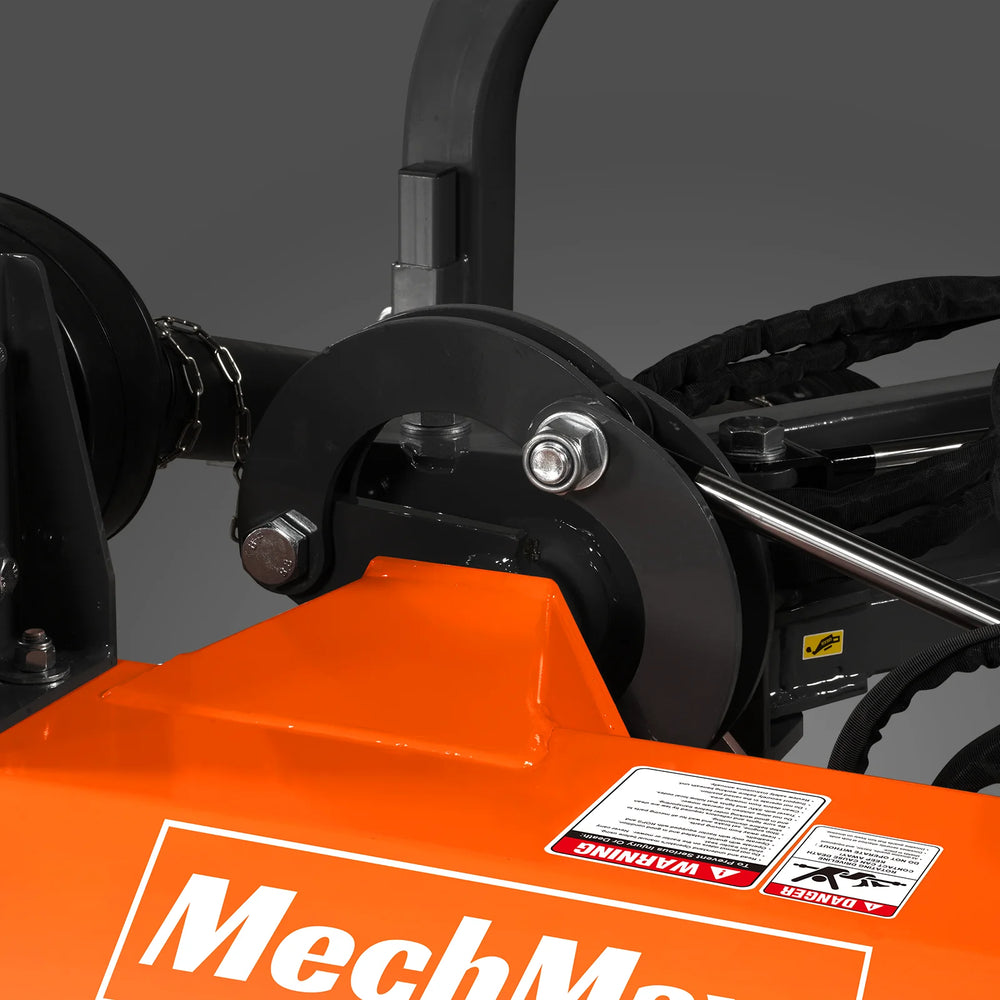

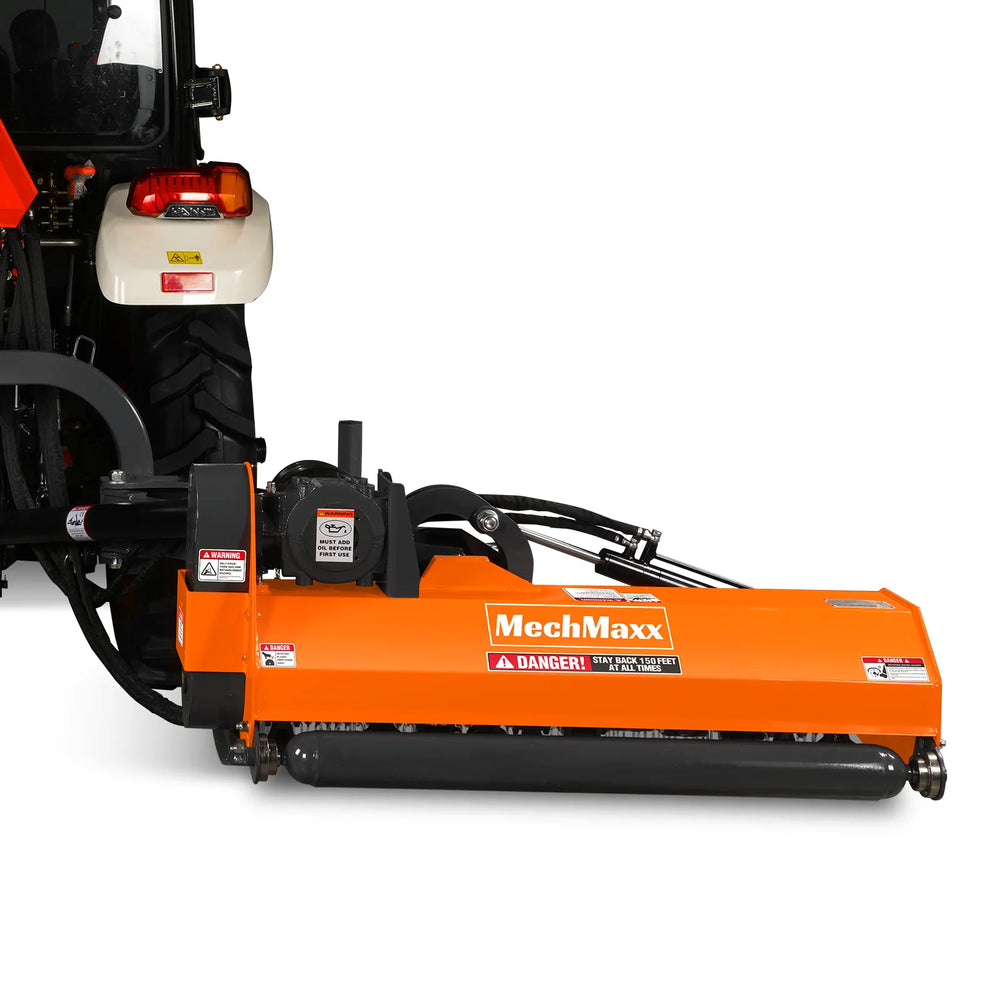

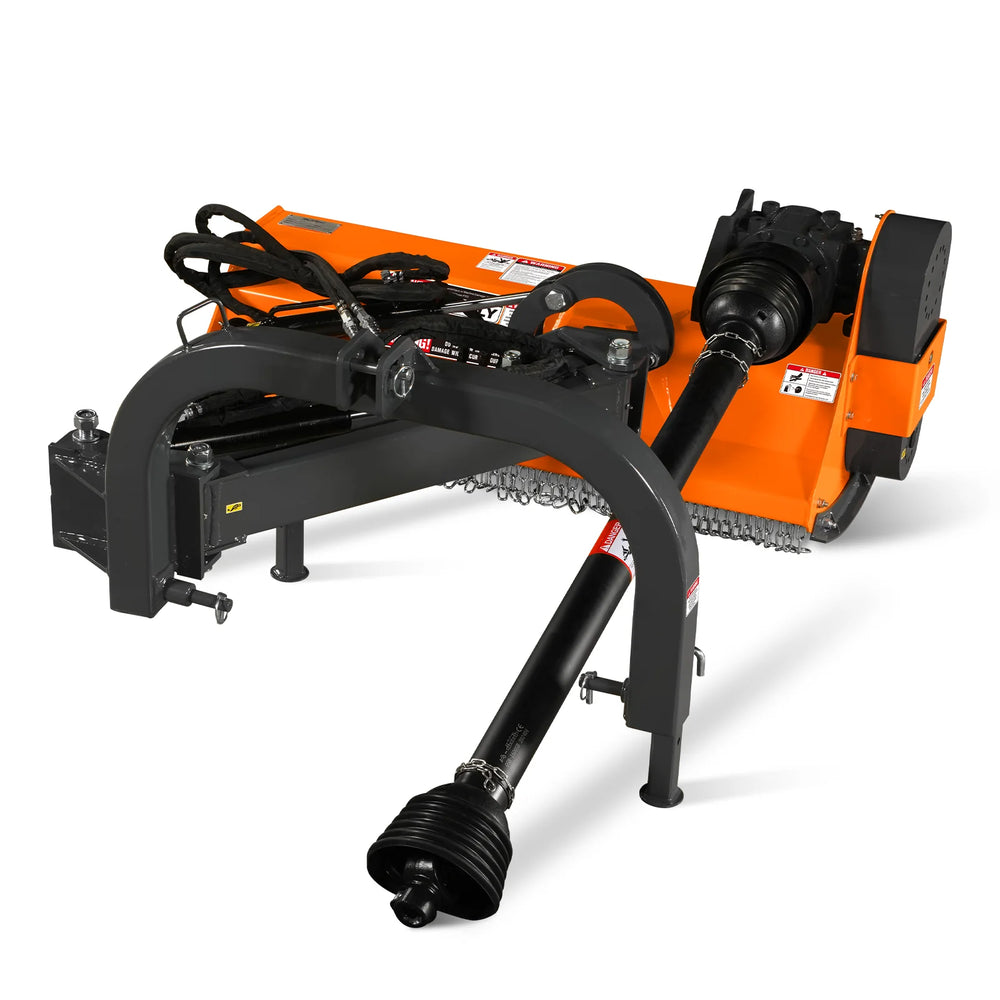

48" Standard 3 Point Offset Flail Ditch Bank Mower, 25-50HP, VAM48
$249900
$3,399.00
Save $900
From $121.55/mo or 0% APR with
View sample plans
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Payment:
Specifications
| Engine Power Required | 25-50 hp | Rotor Shaft Speed | 2356 rpm |
| Working Width | 48in | Hydraulic Fittings Size | G1/2 in |
| Overall Width | 56in | Hydraulic Hoses Quantity | 4 |
| Ground Clearance (Two Gears) | 0.5-0.6in | Drive Type | Belt Drive |
| Max. Cutting Diameter | Depends On The Type Of Grass | Spline End | 1.375in Z6 |

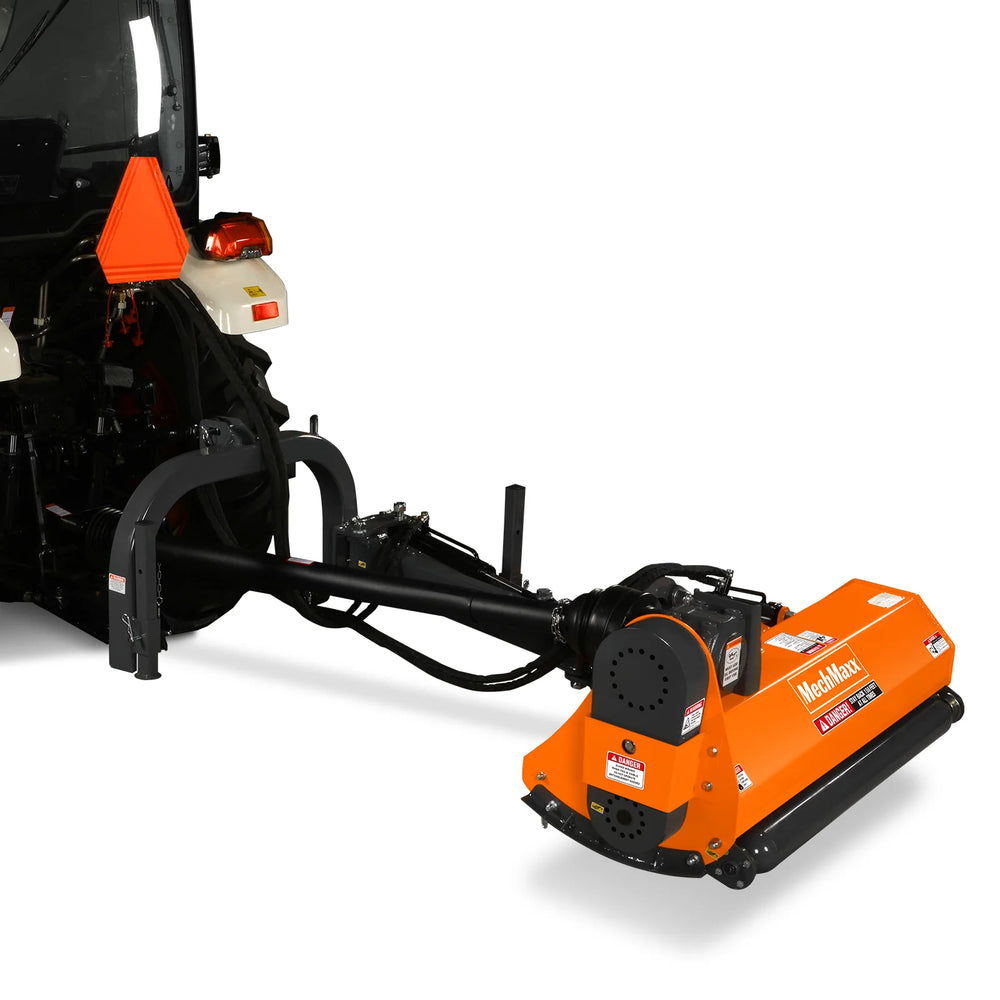

| Offset Distance From The Center (Maximum) | 69in | Driveline Shaft Length | T6-LF-63 With Shear Bolt ; 63-77in [05B-1600] |

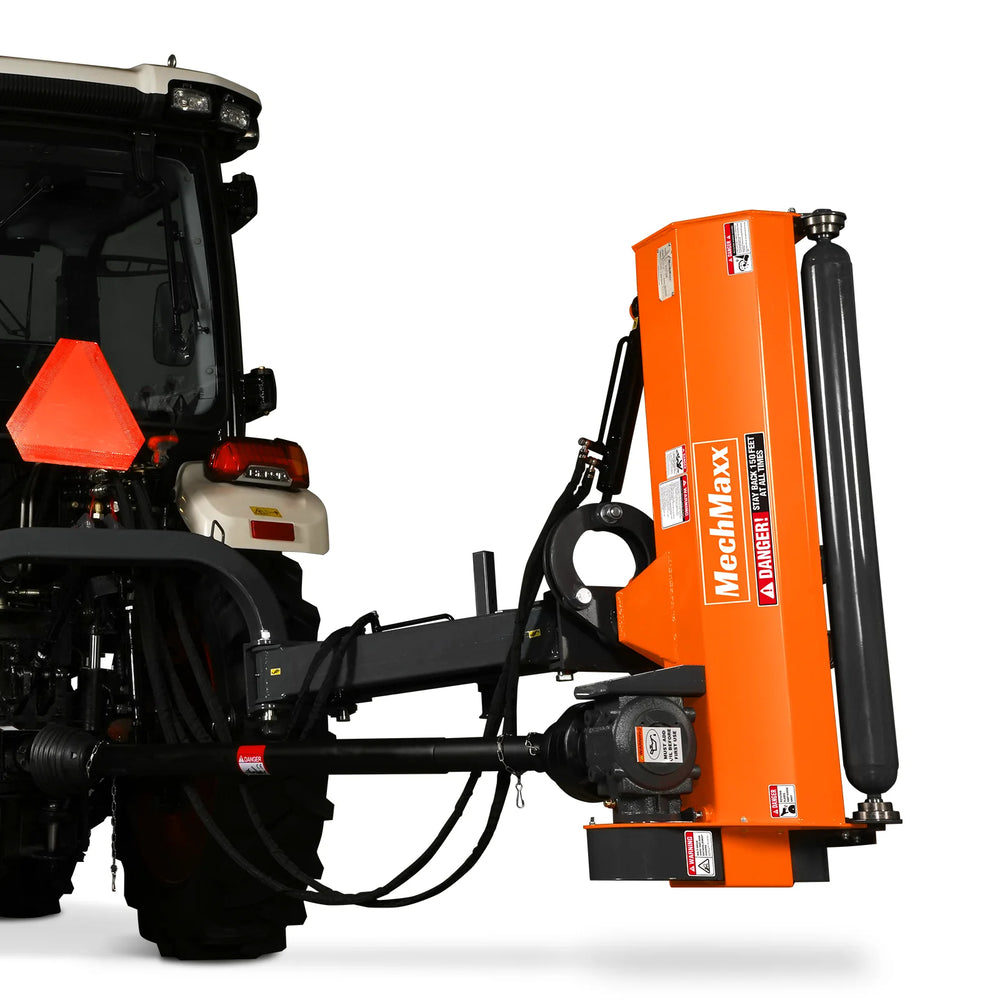

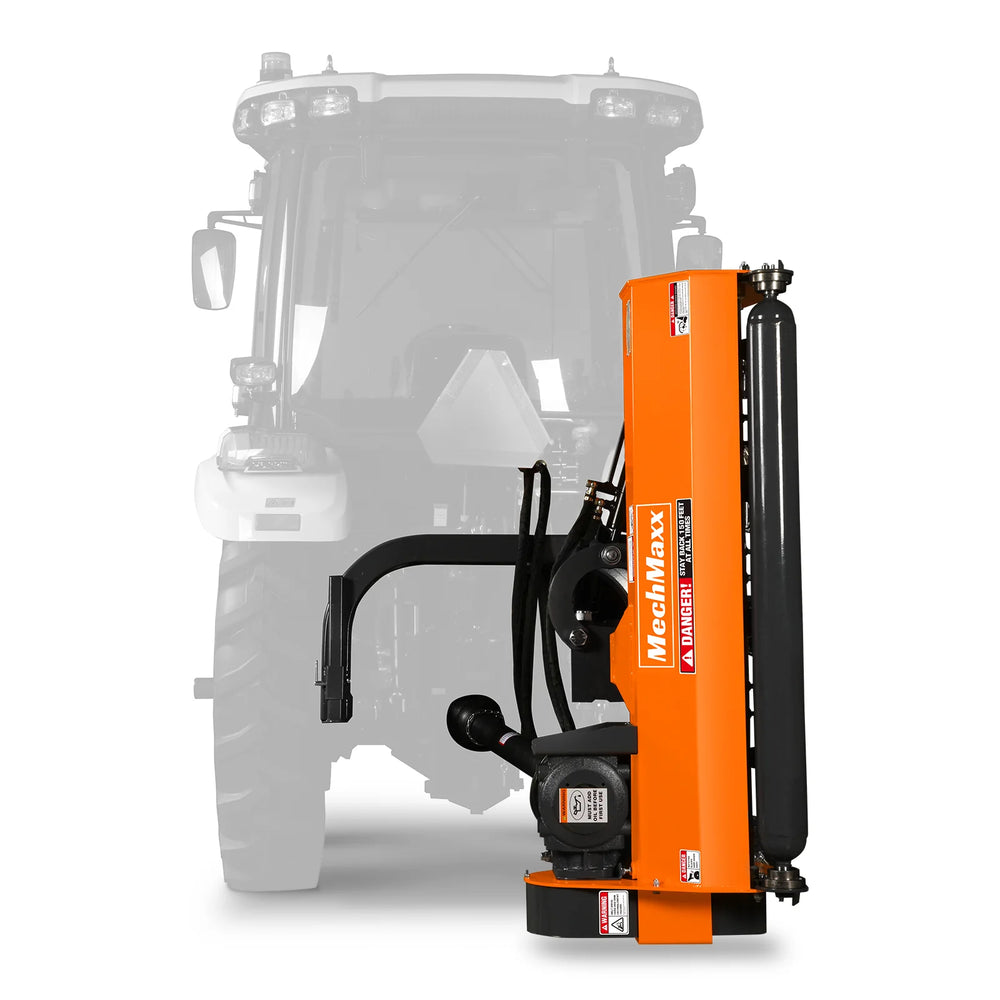

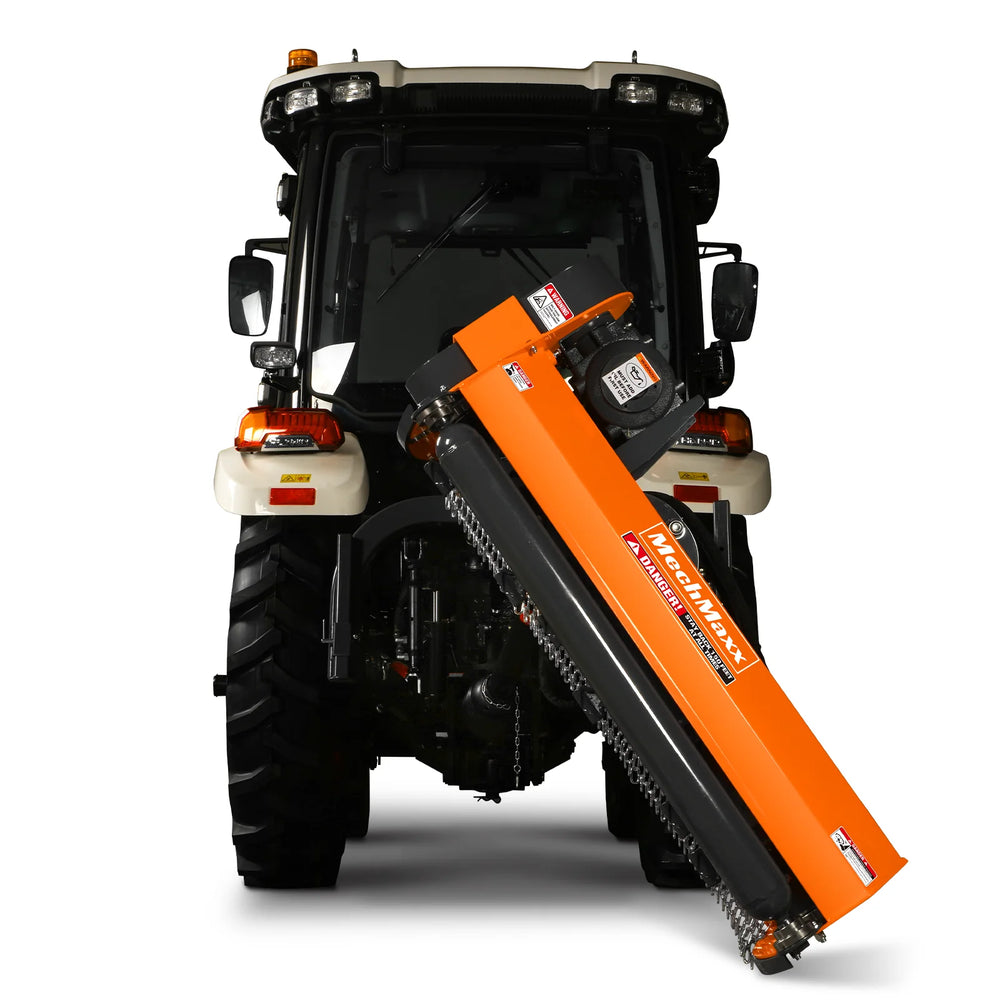

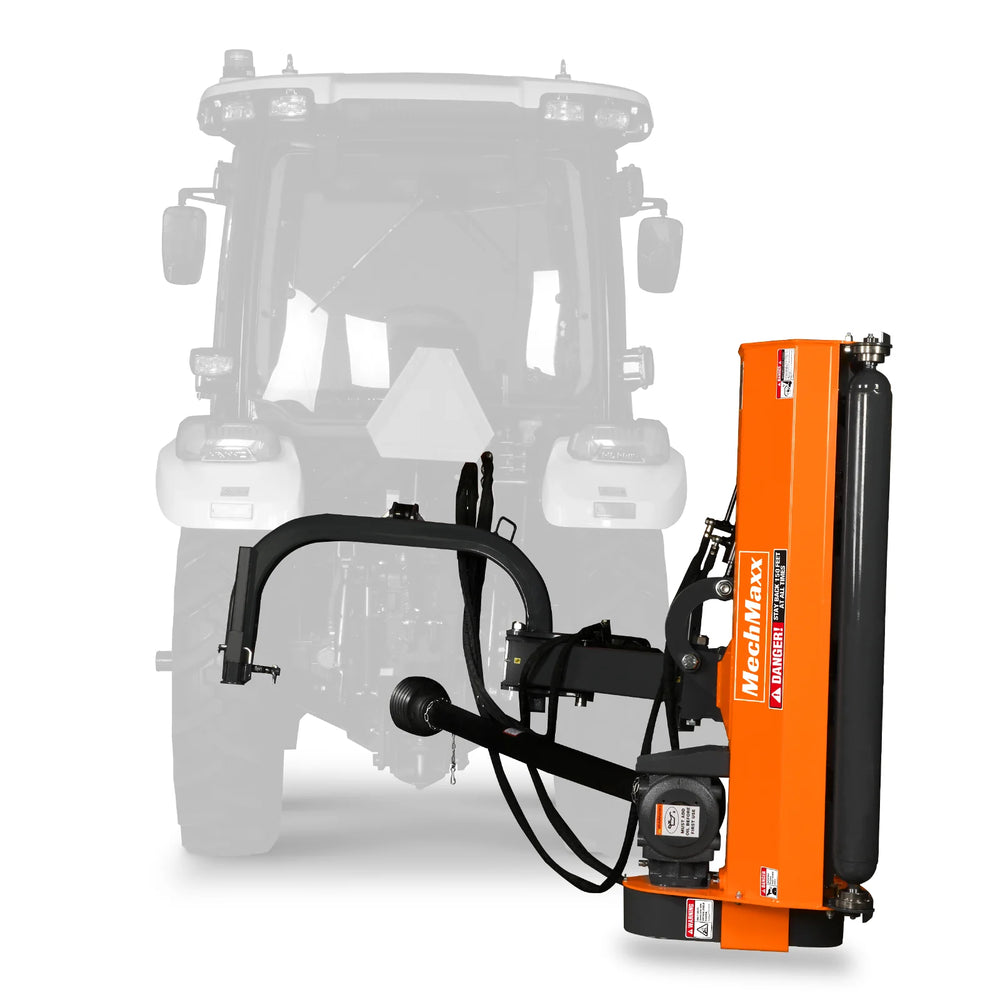

| Tilt-Up Angle | 90° | PTO Shaft Speed | 540 rpm |
| Tilt-Down Angle | 60° | Deck Thickness | 0.16in |
| Number Of Blades | 20 | Side Plate Thickness | 0.25in |
| Blade Type | Hammer | 3-Point Hitch | CAT 1 |

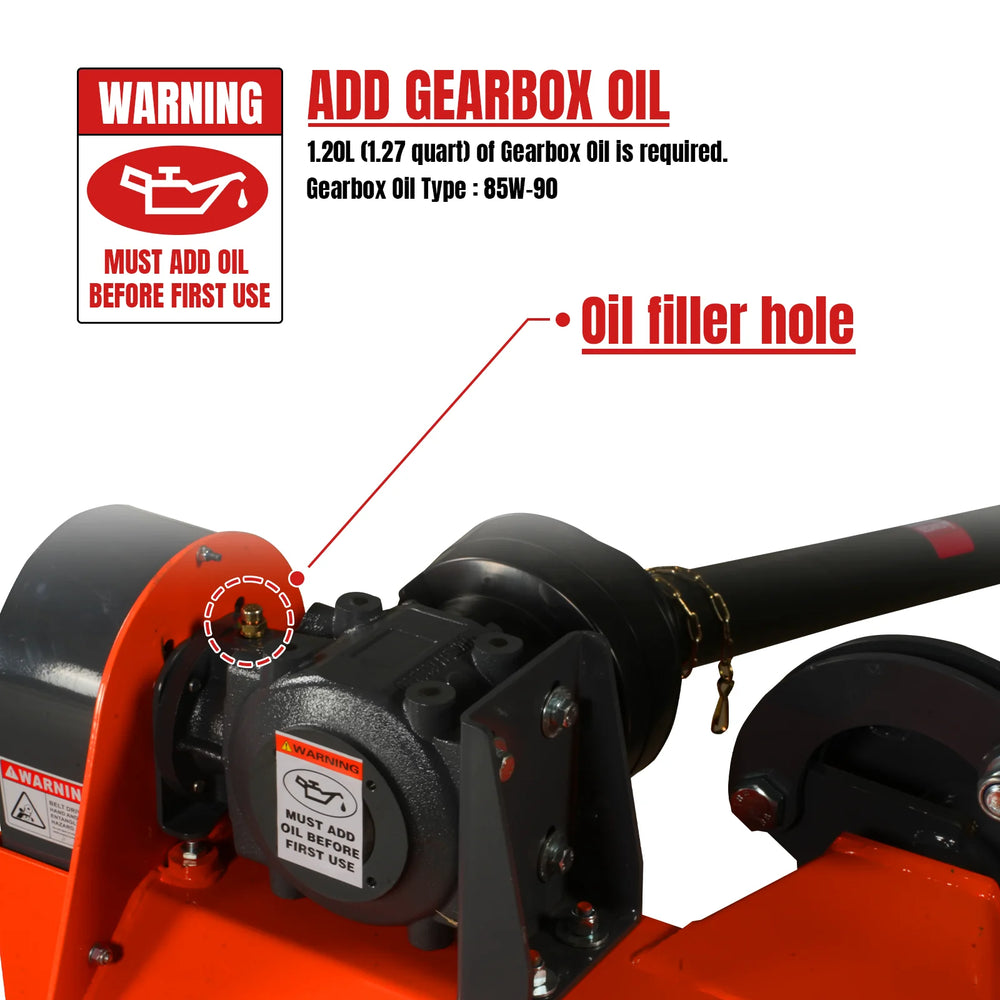

| Size of Blades | 3.5 x 3.2 x 1.6in | Gearbox 0il Type | 85W-90 |
| Blade Weight | 0.9 lbs | Number of Belts | 3 |
| Blade Material | Cast Steel | Belt Size | V Belt 17 x 991 |
| Rotor Bearing | SKF Bearing | Finish | Powder Coating |
| Rotor Diameter | 4.3in | Warranty | 1 Year |
| Blade Swing Diameter | 14in | Dimensions (L x W x H) | 56 x 27.5 x 28in |
| Rotor Thickness | 0.3in | Weight (N.W./G.W.) | 613/723 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
